Fog-Fan

Product Details

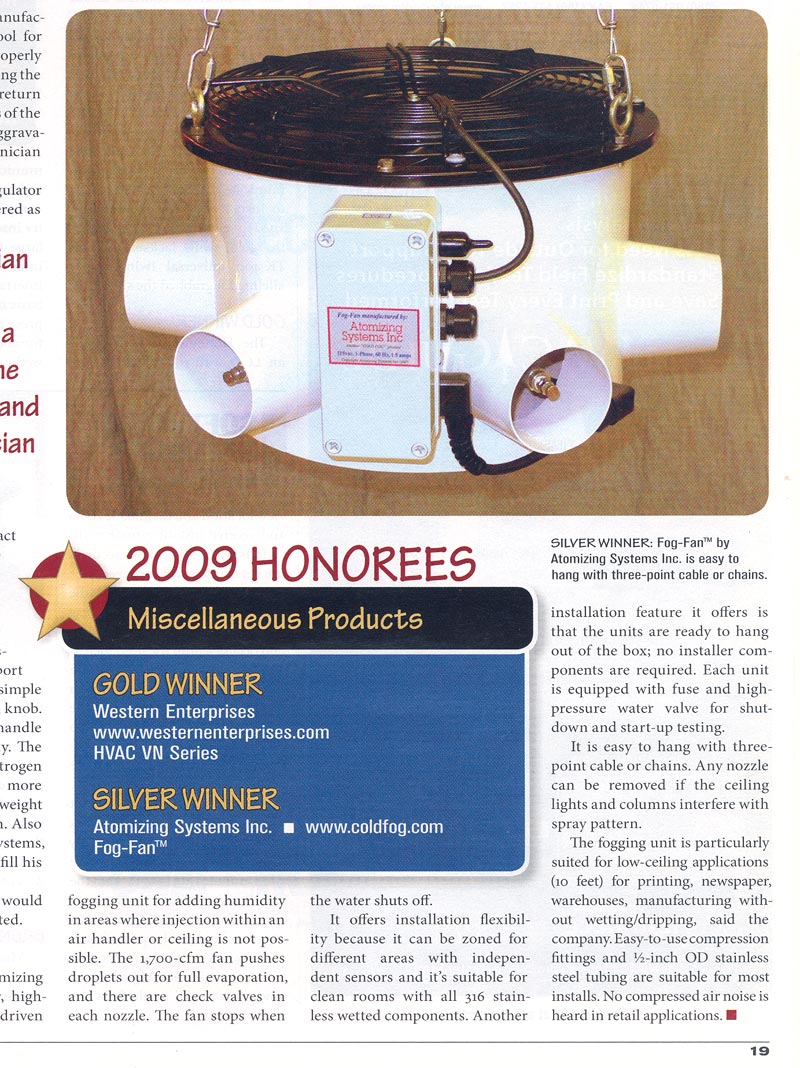

The Fog-Fan '609' by Atomizing Systems Inc. is a circular, high-pressure, six-nozzle, fan-driven fogging unit for adding humidity in areas where injection within an air handler or low-ceiling area was previously not possible. The 1,700-cfm fan pushes droplets out for full evaporation, and there are check valves in each nozzle to insure non-drip shut-off. The fan stops when the water shuts off.

It offers installation flexibility because it can be zoned for different areas with independent sensors and, it's suitable for clean rooms with all 316 stainless wetted components. Another installation feature it offers is that the units are ready to install out of the box; no installer components are required. Each unit is equipped with fuse and high-pressure water valve for shut-down and start-up testing. It is easy to hang with supplied three-point cable or chains. Any nozzle can be removed if the ceiling components or columns interfere with spray pattern.

The fogging unit is particularly suited for low-ceiling applications (10 feet) for printing, newspaper, warehouses, manufacturing without wetting/dripping, said the company. Easy-to-use compression fittings and 1/2 inch OD stainless steel tubing are suitable for most installs. No compressed air noise is heard in retail applications.
