Stack Probe Sensor

Available from Wagner Meters

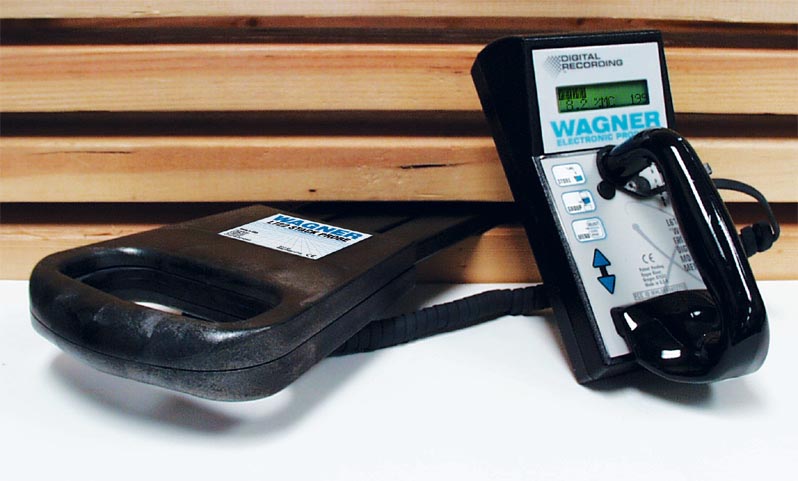

The Model L722 Stack Probe Sensor L612 Digital Recording Moisture Meter makes it easy to reach deep into stickered units of lumber and take accurate moisture readings without the danger of broken pins. Wagner's electromagnetic wave technology makes it possible to take multiple readings throughout an entire stack in just minutes.
The L722 is an attachment for the L612 hand-meter . This combination allows the user to store readings taken in the kiln, and download the information to reports. The information can then be used to help a mill improve its moisture content quality control procedures.
The L722 includes several redesigned improvements that increase durability and ease of use:
*Redesigned probe hinge assembly is resistant to breakage when over-stressed.
*Redesigned metal extrusion provides improved durability and ruggedness for mill environments.
*Improved leaf spring design ensures proper contact with the lumber for more accurate readings, and eliminates the lever actuated cam design of the L712. The springs are user replaceable if damaged.
*Sensor Probe Head is now easily detachable from the extrusion for field servicing.
*Spare Sensor Probe Heads can be purchased separately.

Specifications:
*Probe Reach: L722L—L 40.5" (102.8cm),L722L—S 26.75" (67.9cm)
*Extrusion and Sensor Head Thickness: 0.5"(12.7mm)
*Minimum/Maximum Sticker Range: 0.5"-.09"(12.7mm-22.9mm)
*Scanning Area: 2.5" x 2.5" (6.35cm x 6.35cm)
*Scanning Depth: 1" min.(25.4mm)
